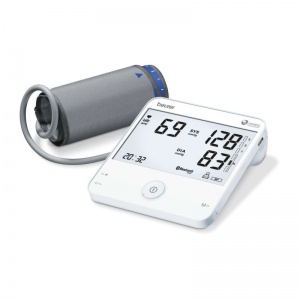

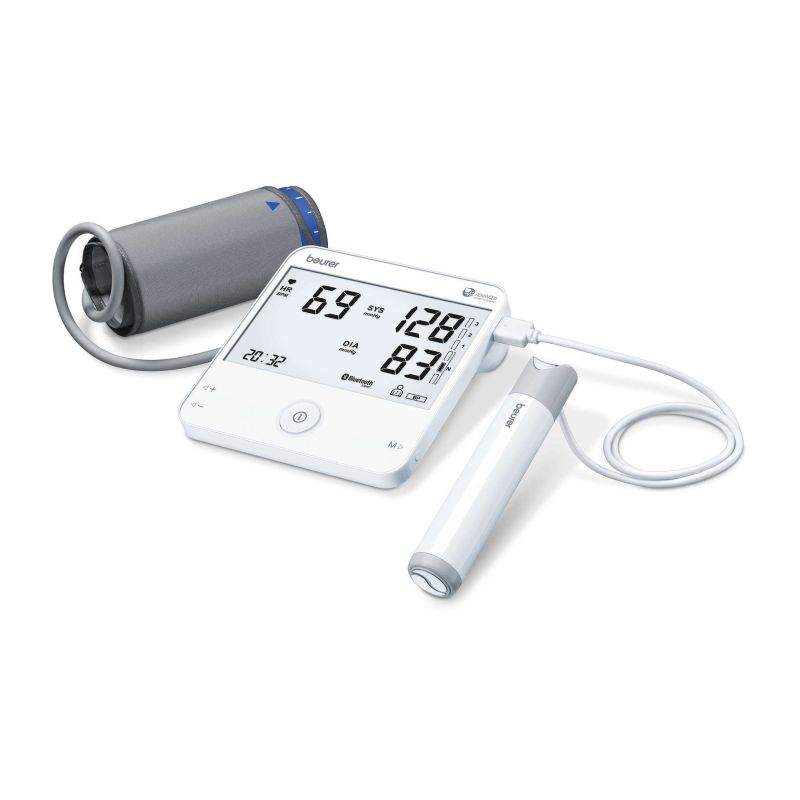

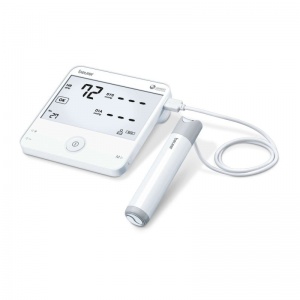

Beurer BM95 Blood Pressure Monitor and ECG
If you've been diagnosed with any cardiovascular irregularities, keeping track of your blood pressure and heart beat can help you improve your condition. Although regular blood pressure monitors alert you in case of arrhythmia, they are, however, not designed specifically for that purpose. The Beurer BM95 Blood Pressure Monitor and ECG is an innovative device made for accurate ECG and blood pressure measurements in the comfort of your home.
What's Included?
- 1 x Blood Pressure Monitor
- 1 x ECG Attachment
- 1 x Carry Bag
- 1 x Instructional CD Rom
- 1 x USB Attachment Cable
- 1 x Set of Instructions
- 4 x AAA Batteries
Before You Start...
Setting up and using medical equipment can be tricky. Once you've unboxed your Beurer BM 95 Blood Pressure Monitor, we strongly recommend you take a few minutes to watch the video below to find out the quickest way to get the most out of your purchase:
Key Features of the Blood Pressure Monitor and ECG
- Automatic blood pressure and pulse measurement
- Advanced arrhythmia detection

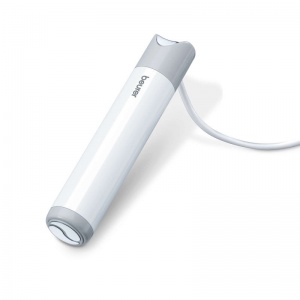

- One channel ECG for recording heart rhythm
- Connects to your smartphone or tablet via Bluetooth or USB
- Suitable for upper arm circumferences from 22cm to 42cm
- Has 2 x 60 memory spaces, so two users can save their readings
- Automatic switch-off and battery changing indicator
- Storage pouch and four 1.5V AAA batteries included
Instructions for Use

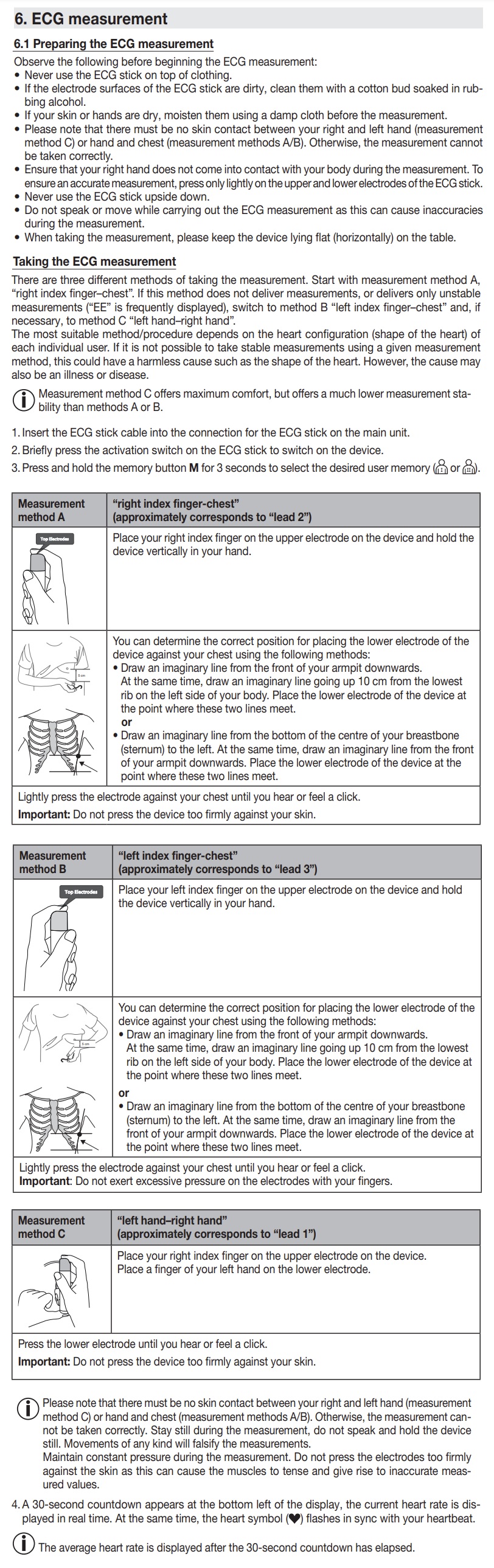

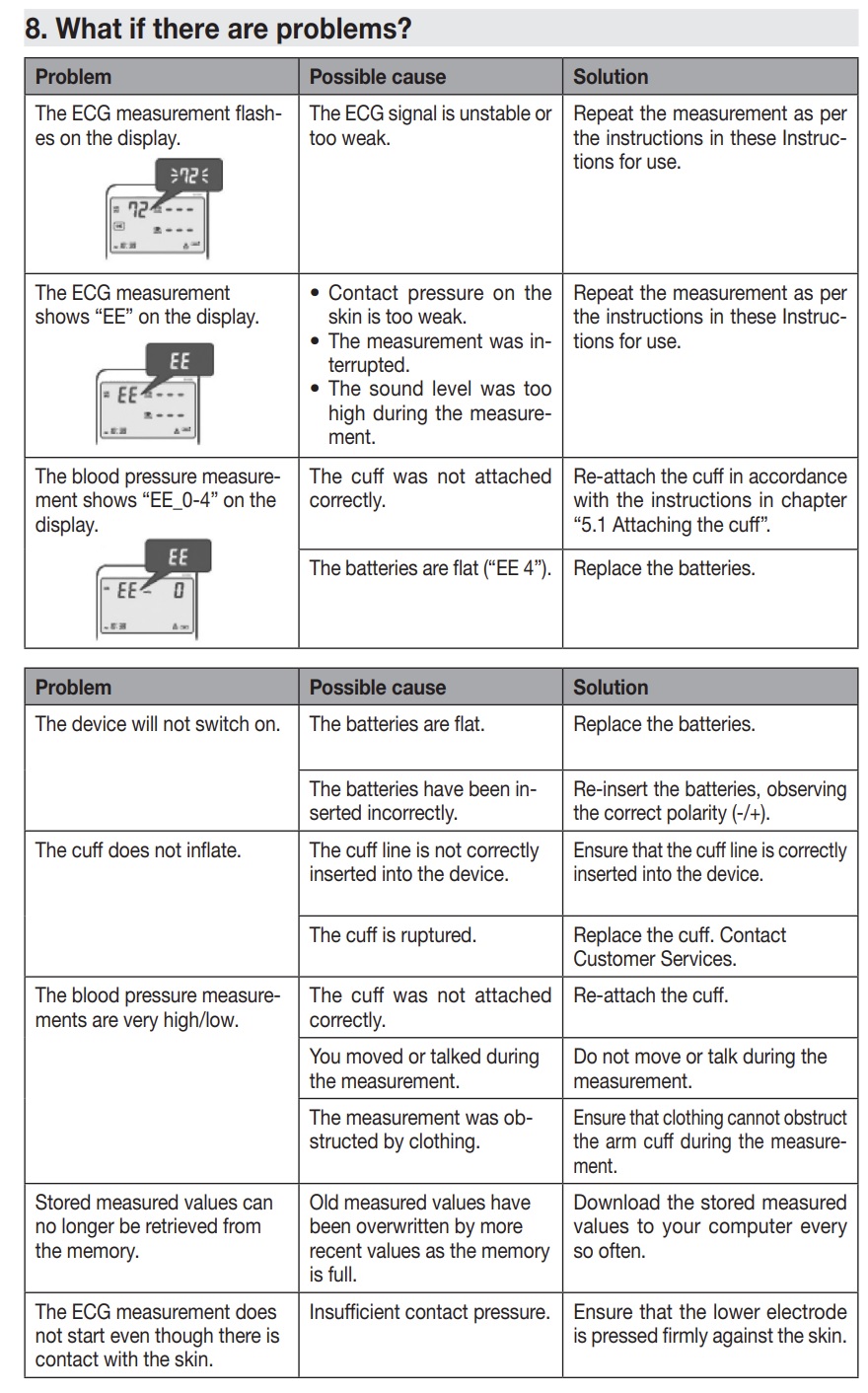

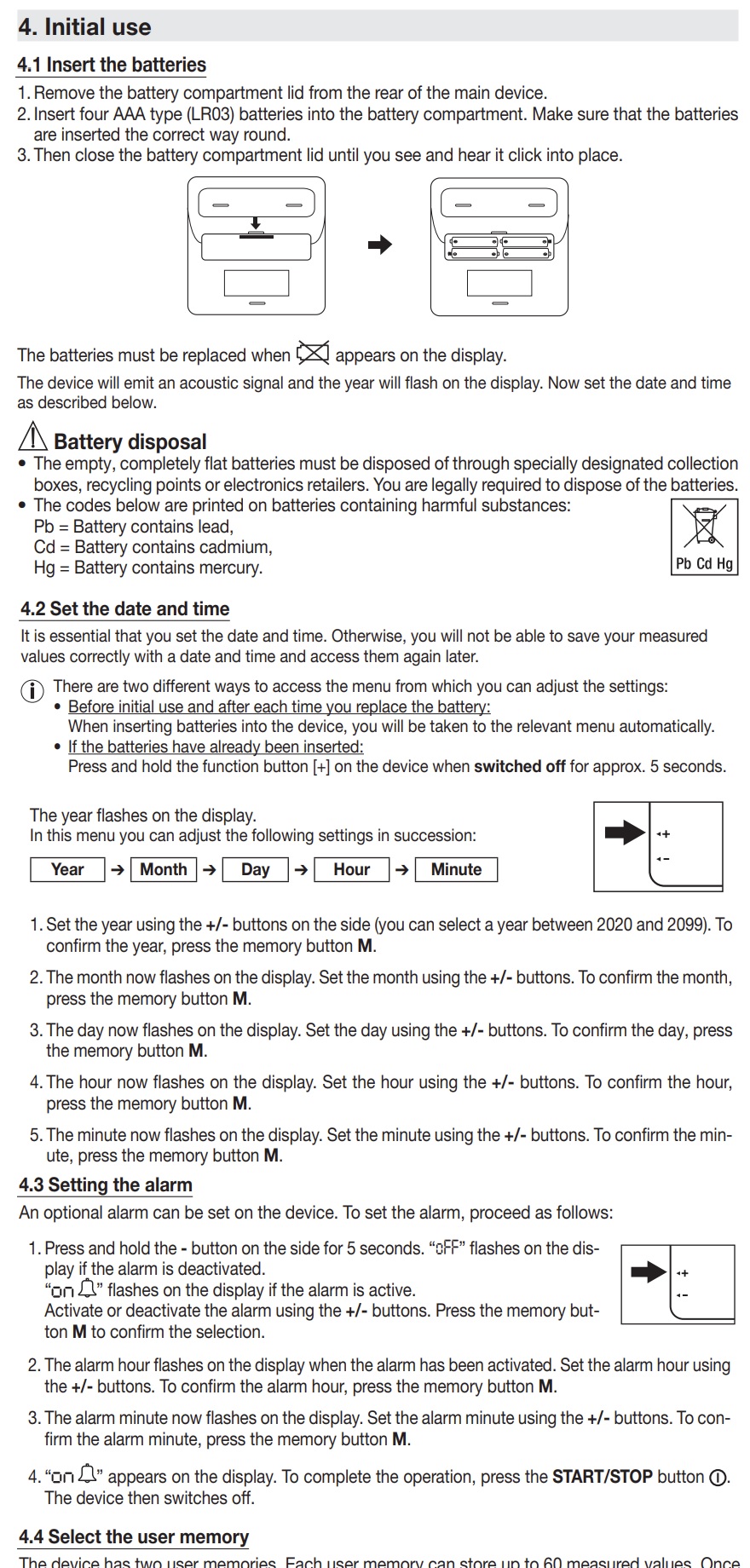

To make setting up, calibrating and using your device that little bit more straightforward, we've put together a set of instruction manuals that are easy to follow. You can access any of these by clicking the one of the links below:
More Than Just Another Blood Pressure Monitor
While most blood pressure monitors detect arrhythmia, they are not precise enough to know what is causing the irregularities.The Blood Pressure Monitor and ECG comes with advanced arrhythmia detection function, which means the device detects atrial fibrillation and premature ventricular contractions.
How Does the Blood Pressure Monitor Work?
Measuring your blood pressure with the Beurer BM95 is easy. Follow these steps:

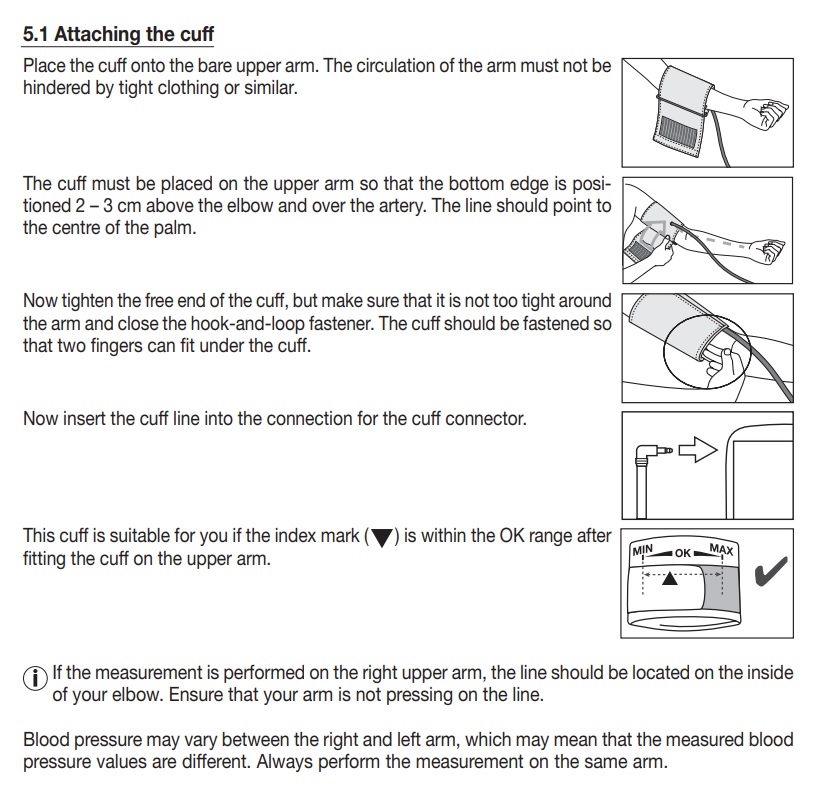

- Place the cuff on to the bare left upper arm. The cuff must be placed on the upper arm so that the bottom edge is positioned 2 – 3 cm above the elbow and over the artery.
- Now tighten the free end of the cuff, but make sure that it is not too tight around the arm and close the hook-and-loop fastener.
- Insert the cuff line into the connection for the cuff connector.
- Press the Start/Stop button to start the blood pressure measurement.
- The results are displayed on the display as soon as the blood pressure measurement is complete.
- To switch off the device, press the Start/Stop button or wait for 2 minutes until the device switches off automatically.
Beurer Cardio Expert App
Beurer Cardio Expert is a free application you can download to you smartphone or tablet for a complete overview of your health, and accurate, medical-grade ECG measurements at home. You can easily connect the monitor to your smartphone or tablet via Bluetooth low energy technology or USB.
Suitable for Two Users
The monitor comes with 2 x 60 memory spaces, which means that two people can save up to 60 of their individual measurements on the same device. This is ideal if you are planning to share the Blood Pressure Monitor and ECG with a member of the family.
Please note that it is not recommended to use the device with a pacemaker or other implanted devices. Please seek the advice of your doctor for further information.
Technical Specifications
- Measurement Range:
- Cuff Pressure: 0 - 300 mmHg
- Systolic: 60 - 280 mmHg
- Diastolic: 30 - 200 mmHg
- Pulse: 30 - 180 beats/minute
- ECG Range/Sample Rate: 0.05 - 40Hz/256Hz
- Display Accuracy:
- Systolic: ±3 mmHg
- Diastolic: ±3 mmHg
- Pulse: ±5% of the value shown
- Memory: 2 x 60 memory spaces
- Dimensions:
- Main Unit (LxWxH): 128 x 128 x 40mm
- ECG Stick (DxH): 25 x 125mm
- Weight:
- Main Unit: 300g (without batteries)
- ECG Stick: Approximately 40g
- Cuff Size: 22 - 42cm
- Power Supply: 4 x AAA batteries
- Battery Life: Approximately 300 measurements
- Bluetooth 4.0, iOS version 7.0 or higher
- Android Devices: Version 4.3 or higher with Bluetooth
-
To obtain a detailed representation of your recorded data, you can install the PC version of Beurer Cardio Expert from the supplied CD or download the app, which is available as a free download from the Apple App Store or Google Play. The data can be transferred via USB interface or Bluetooth.
PC Version Requirements
- Operating Systems: Windows XP, Windows Vista, Windows 7, Windows 8
- Processor: Intel Core 3-3220 3.3 GHz or higher
- Screen Resolution: Min. 1280 x 1024
App Requirements
- Bluetooth 4.0, iOS version 7.0 or higher
- Android Devices: Version 4.3 or higher with Bluetooth
